PDM20-2S2R2

156.50

Availability: In Stock

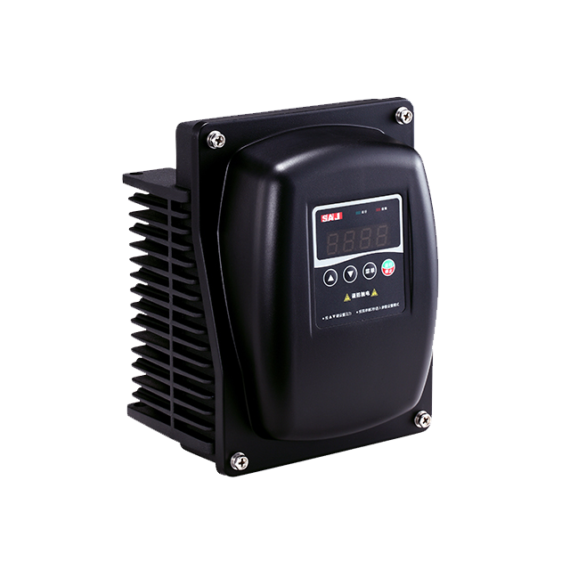

PDM20 Smart Pump Drive

PDM20 Smart Pump Drive Series product is a kind of integrated frequency controller suitable for all kinds of small single pump constant pressure water supply devices. Compact and delicate, the volume is only 45% of that of other series with the same specifications; IP65 protection, dustproof and waterproof; can be installed directly on the pump motor. It’s characterized with perfect single pump control function, easy operation, high reliability and good quality.

Avaibility: In Stock
Share:
Control mode:V/F control
Start torque:1Hz 100%
Speed regulation range:1:20
Overload capability:120% rated current for 60s, 150% rated current for 1s
V/F curve:Linear
Acceleration/deceleration curve:Linear; time range: 0.1-3600s
Start frequency:1~10Hz
Input voltage:Single-phase 220V±15%
Input frequency range:50/60Hz, fluctuation range: ±5%
Output voltage:Three-phase 0-rated input voltage
Output frequency:0~50/60Hz
Programmable digital input:2 digital input
Programmable analog input:AI1:0-10V/4-20mA, selected by function parameters
Analog power:+5V-+24V adjustable power, set voltage by function code setting
Command running channel:operation panel and digital terminals
Frequency source:Digital setting, PID setting
Integrated PID:Realize closed loop control system
AVR:When grid voltage changes, it keeps output voltage constant automatically. By default, it doesn’t work at deceleration.
Stall control:Automatically limit current and voltage at running period to prevent tripping caused by frequent overcurrent/over voltage.
LED display, setting:Display pressure, voltage, programmable, rapid pressure setting, parameter hidden function
Automatic energy-saving running:Decrease output voltage automatically at light load to save energy.
Password setting:4-bit password can be set with non-zero numbers. Exit password setting interface and the password will be valid after 1 minute.
Parameter lock:Define whether the parameter is locked in running or stopped state in case of misoperation.
Constant pressure control:PID adjustment, PID feedback of break detection, PID sleeping and wakeup
Self-starting at power on:Optional self-starting at power on, adjustable starting delay
Anti-freezing:Anti-freezing running option: frequency, time, cycle
Water leakage inspection:Optimize sleeping control by water leakage inspection
High pressure alarm:Detect feedback pressure to protect pipe network
Low pressure alarm:Detect feedback pressure to protect pipe network and pumps
Water shortage protection:Multiple detection modes output pressure, frequency, current; auto reset and restart
Altitude:Lower than 1000m, service in derated capacity above 1000m. Derate 1% capacity every 100m increase in height.
Environmental temperature:-10℃~+40℃, service in derated capacity for 40℃~50℃. Derate 4% capacity every 1℃ increase in temperature.C41
Vibration:<9.8m/S2(1.0G)
Storage temperature:-40℃~+70℃
