• Household appliance approvals for pollution degree 3 to
IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
• AC input voltage range selectable by switch (90-132 Vac,
180-264 Vac)
• No load power consumption < 0.5 W
• Low profile design: 30 mm height
• Over voltage category III
• Wide operating temp -30°C ~70°C (Support -40°C cold start)
• Conforms to harmonic current IEC/EN/BS EN 61000-3-2,
Class A
• High MTBF > 700,000 hrs per Telcordia SR-332

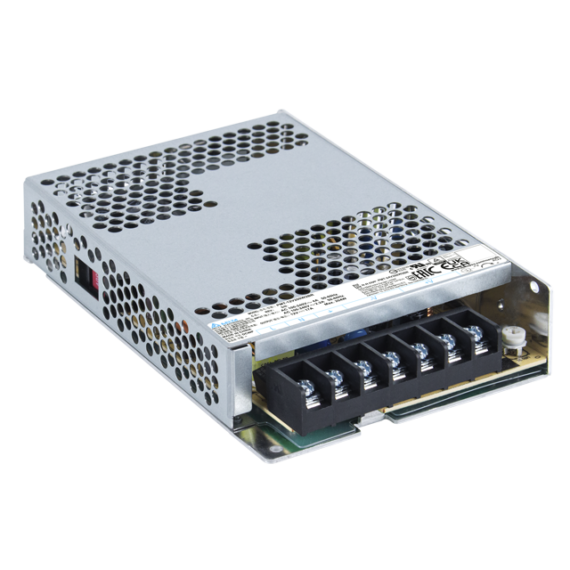

PMT-12V200W2BR
31.51€
Availability:
In Stock
PMT 2 nd generation (PMT2) power supplies is designed with low profile, offers selectable AC switch input with nominal output voltage.
The highly efficient convection cooling construction can operate from -30°C to 70°C. The single output is specifically designed with
compact and competitively priced for household electrical appliances safety approvals to pollution degree 3 as well as including IEC/EN
60335-1, IEC/EN 61558-2-16, IEC 60950-1 & IEC/EN/UL 62368-1.
