| Manufacturer: | Delta Electronics |
| Series: | VFD-EL-W |
| Model: | VFD022EL43W |
| Application: | pumps / general purpose |
| Capacity, kW: | 2.2 |
| Current, А: | 5.5 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Output frequency, Hz: | 0,1-400 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0,1-600 |
| Deceleration time, sec: | 0,1-600 |
| RS485 (Modbus RTU): | RS485 |
| Starting torque: | 5 Hz / 150% |
| PID: | PID control |
| V/f control mode: | + |
| Operation temperature, °С: | -10…..+50 |
| Storage temperature, °С: | -20…..+60 |
| Dimensions (W x H x D), mm: | 100x174x136 |
| Weight, kg: | 1,4 |
VFD022EL43W
205.43€
Availability:
In Stock

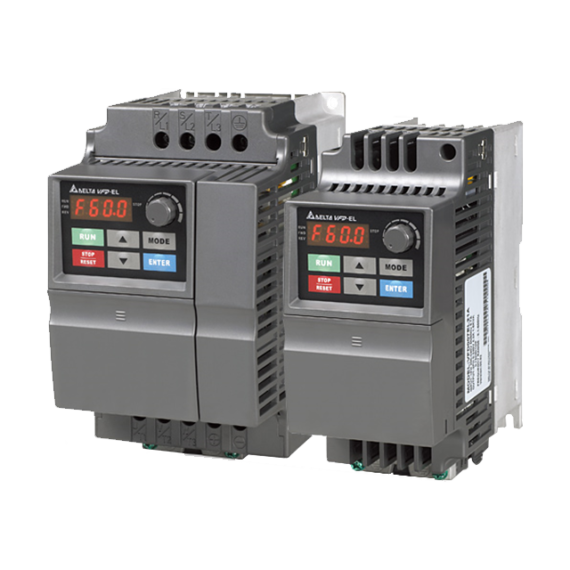

Delta’s VFD-EL-W series is the new generation compact vector control drive. Simple, delicate and durable design inherits Delta’s superior drive technology. Various essential functions are built-in as standard, including: Multi-step Operation; Torque Compensation; PID Control; Multi-Pump Control; Water Supply at Constant Pressure; Leakage Detection function and so on. It also with complete built-in protection mechanism, such as: Over-current; Over-voltage; Low-voltage; Over-heat; Over-load; Over-torque and Phase Loss Protection. VFD-EL-W not only saves the extra cost but also increase the market competitiveness with the best technics. Applications: edge banding machine, logistic conveyor, material handling and constant pressure pump.
