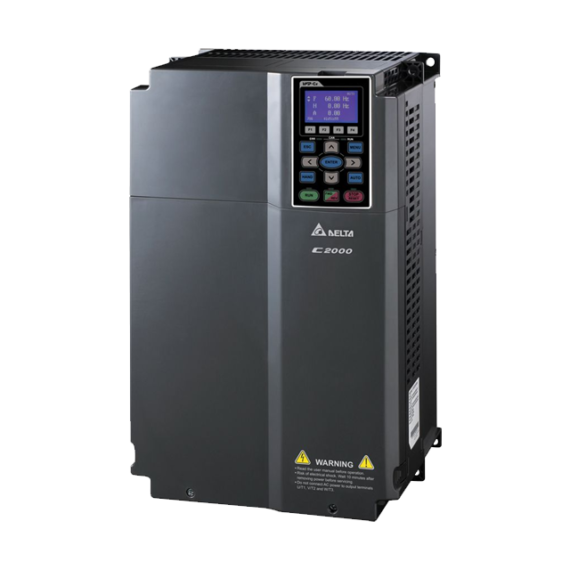

VFD370C43S

1,697.38€

Availability: In Stock
  • Speed/torque/position control mode, dual rating design (Normal duty/heavy duty)
  • Outstanding 4‑quadrant torque control/limit
  • 2 in 1 (induction motor and synchronous motor)
  • Built‑in Delta PLC function, safe stop function and brake unit
  • Support of various network protocols
  • Synchronous position control
  • Long‑life design and life detection of important components
  • Enhanced protections and adaptation to ambient conditions
  • Complies with global safety standards, including CE, UL and cUL
  • Modular design for easy maintenance and many extensions
  • High‑speed communication interface with built‑in CANopen and MODBUS communication (optional cards for PROFIBUS‑DP, DeviceNet, MODBUS TCP and EtherNet/IP)
Avaibility: In Stock
Categories: , ,
Tag:
Share:
Add to Wishlist
spinner



Manufacturer: Delta Electronics
Series: C2000
Model: VFD370C43S
Input Range VAC: 380 to 480 Volts AC
Input Phase: 3
HP (CT): 50 Horsepower
Amps (CT): 69 Amps
HP (VT): 50 Horsepower
Amps (VT): 73 Amps
Max. Frequency: 600 Hertz
Braking Type: DC Injection;Dynamic Braking Transistor Optional (External)
AC Line Regenerative: No
Closed Loop: Yes
Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
Operator Controls: Keypad Included
IP Rating: IP20
Frame Size: D0
H x W x D: 19.69 in x 11.02 in x 10.04 in
